Serveur Série RS232/485 vers WiFi POE Ethernet Convertisseur, Modbus/MQTT Gateway, Support Série vers WiFi, Série vers Ethernet, Ethernet vers WiFi, etc. Alimentation DC 6~36V/PoE

Appareils compatibles: Ordinateurs industriels, automates, appareils d'automatisation
Usages spécifiques pour le produit: Ordinateurs industriels, automates, appareils d'automatisation
Type de connecteur: RJ45
Couleur: RS232 RS485 to WIFI POE ETH Serial Server
Dimensions de l'article L x l x H: 8,4 x 8,5 x 2,4 centimètres
Marque: Waveshare
Nombre de ports: 4
Quantité d'articles dans le colis: 1
Type de prise d'alimentation: Aucune prise
Nombre d'unités: 1.0 unité

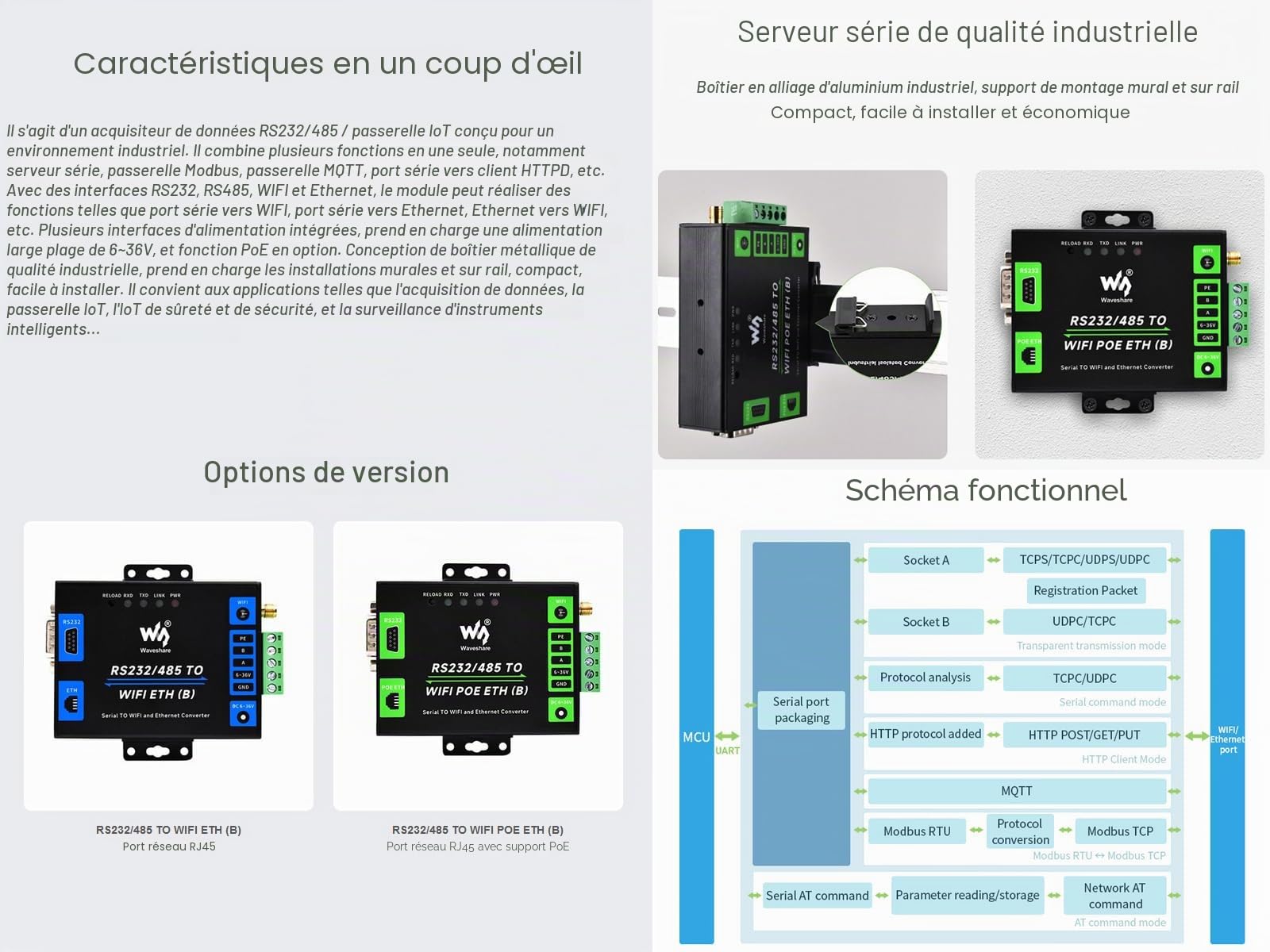

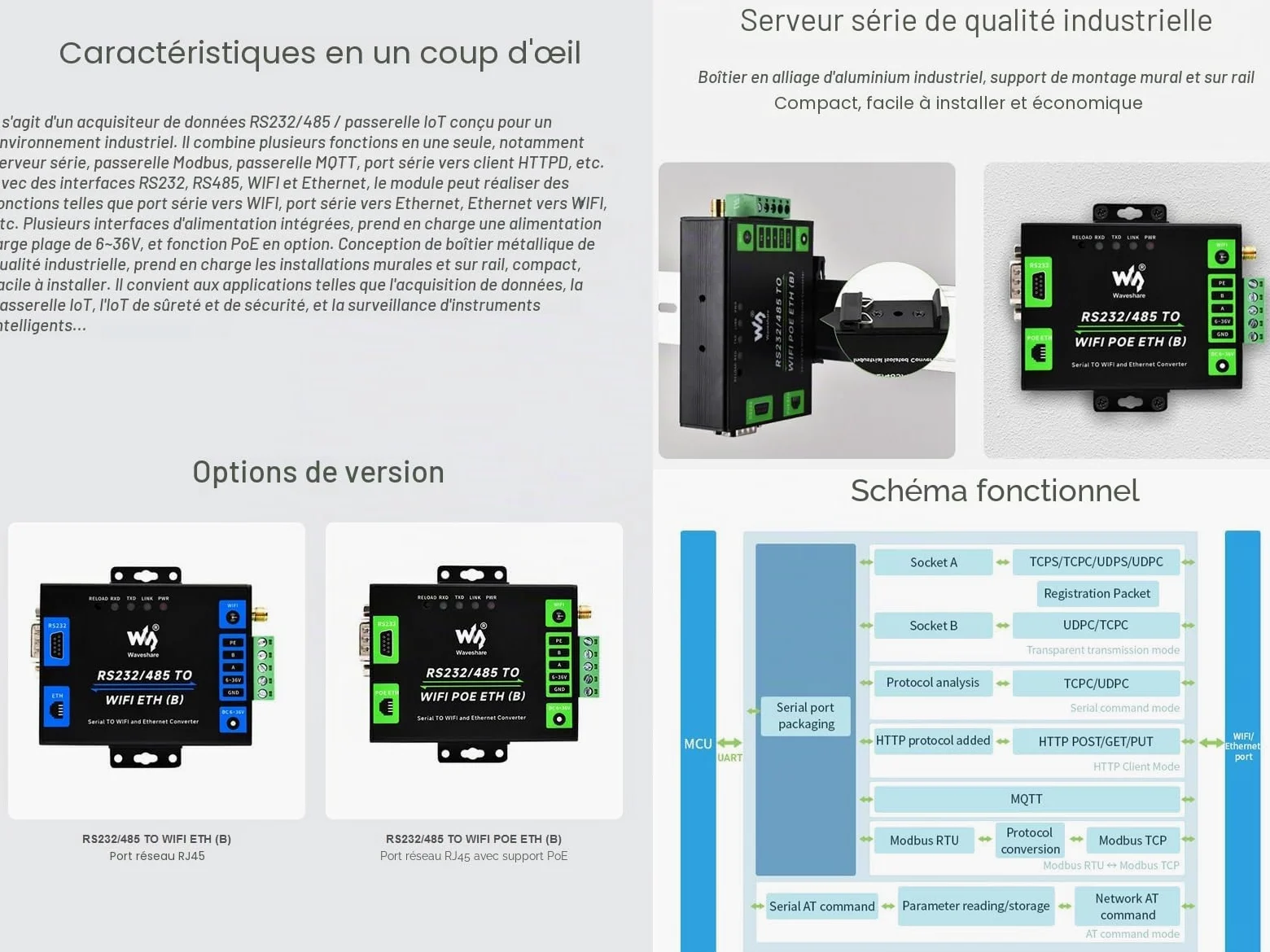

- ★ RS232/485 Serial to WiFi POE Ethernet Converter combines serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc. multi functions in one, with RS232, RS485, WIFI and Ethernet interfaces, support serial port to WIFI, serial port to Ethernet, Ethernet to WIFI, etc.

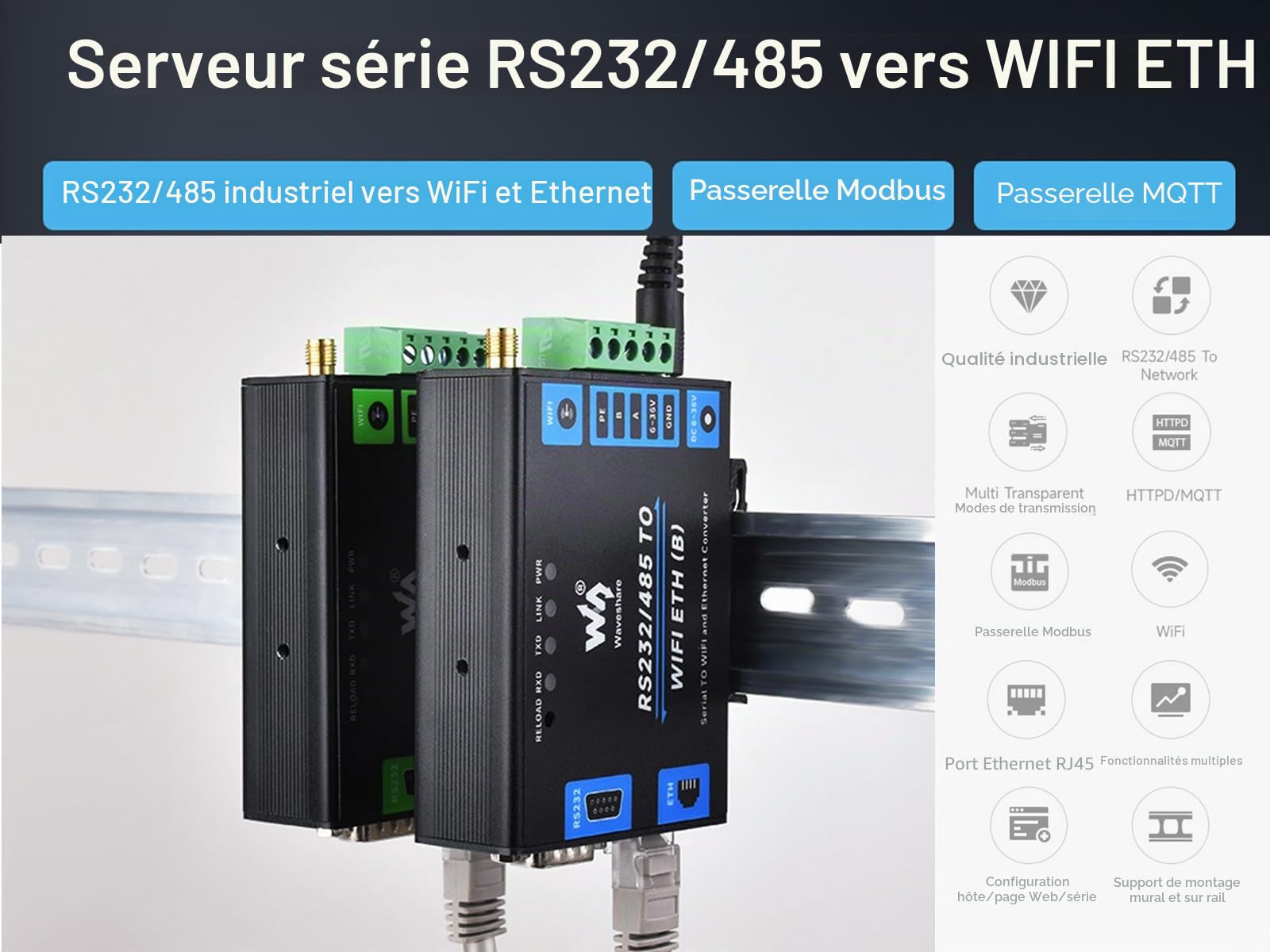

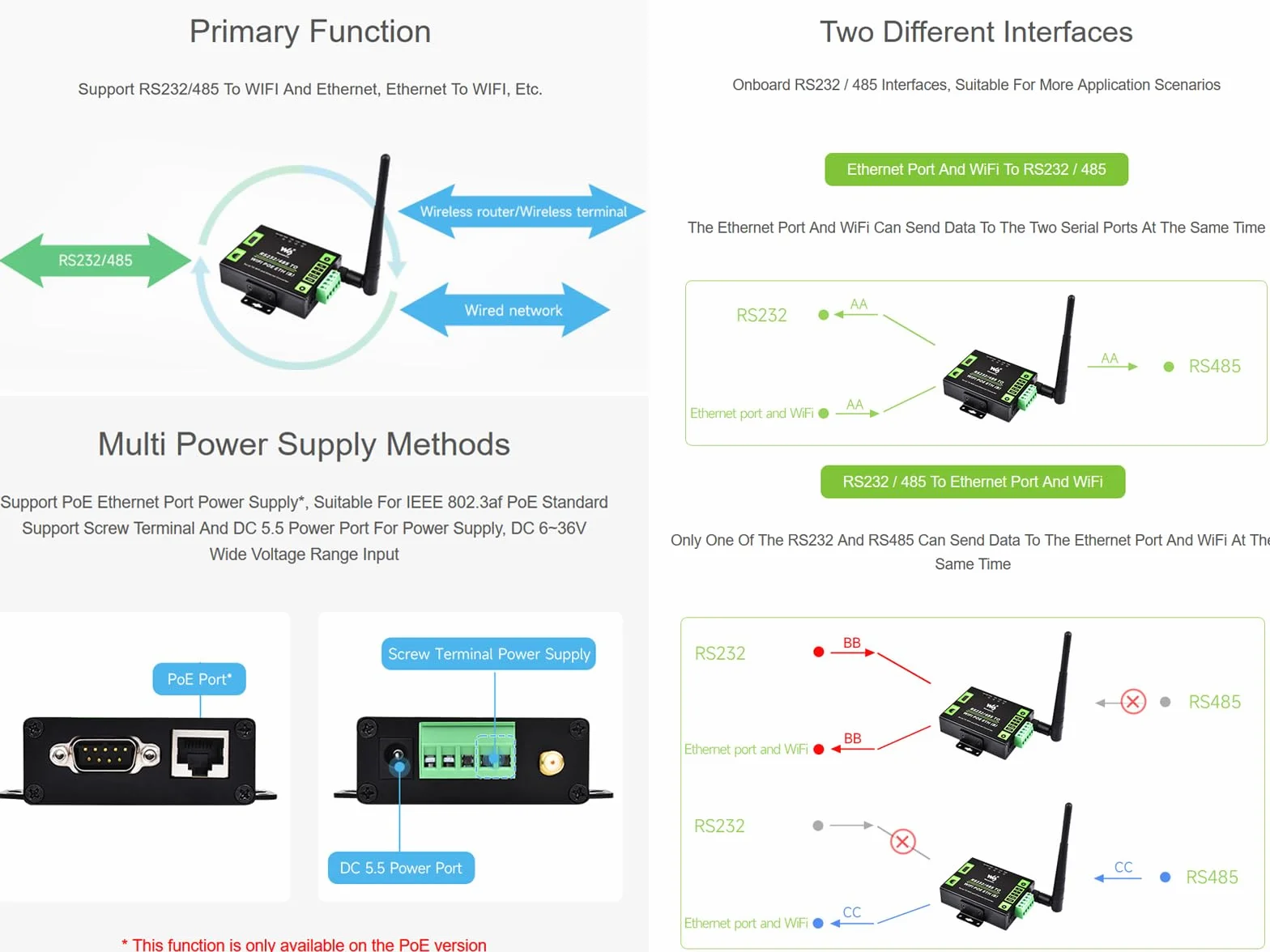

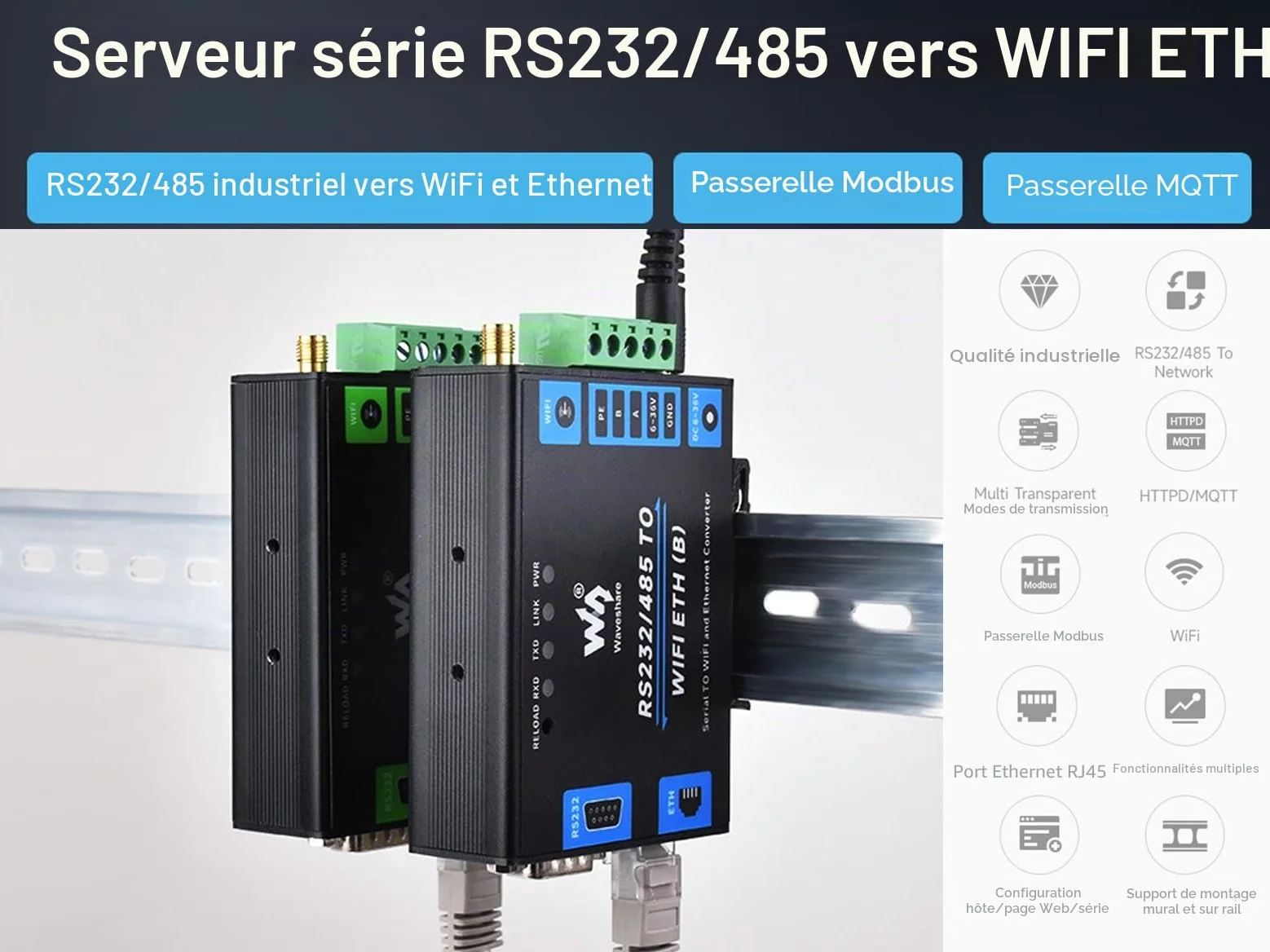

- ★ RS232/485 to WiFi POE Eth serial device server support PoE Ethernet port power supply, suitable for IEEE 802.3af PoE standard, support screw terminal and DC 5.5 power port for power supply, DC 6~36V wide voltage range input. Industrial aluminum alloy case, wall-mount and rail-mount support

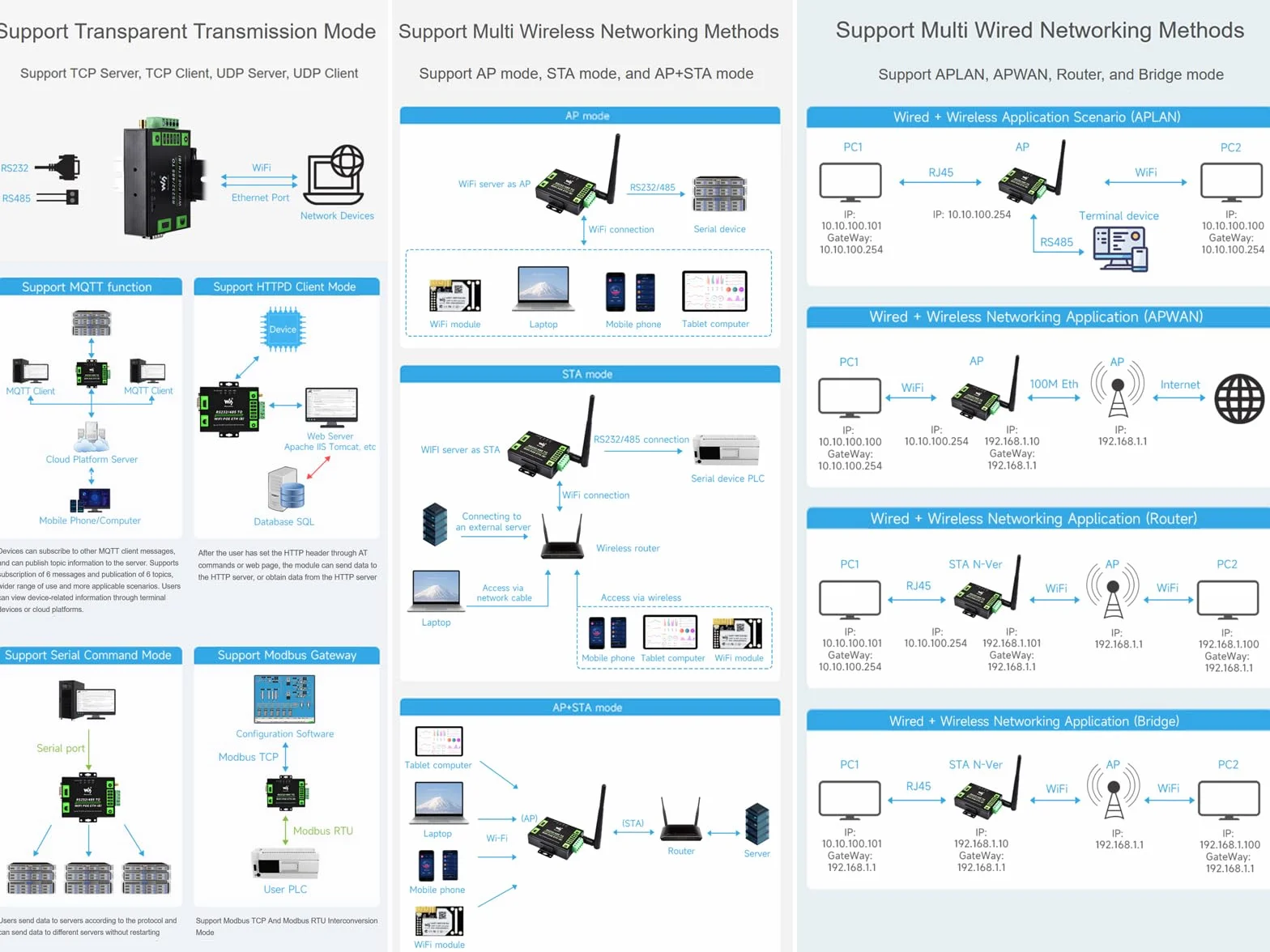

- ★Industrial grade serial server RS232/485 to WiFi and Ethernet support TCP server, TCP client, UDP server, UDP client transparent transmission mode
- ★ Support AP mode, STA mode, and AP+STA mode multi wireless networking methods, support APLAN, APWAN, Router, and Bridge mode multi wired networking methods

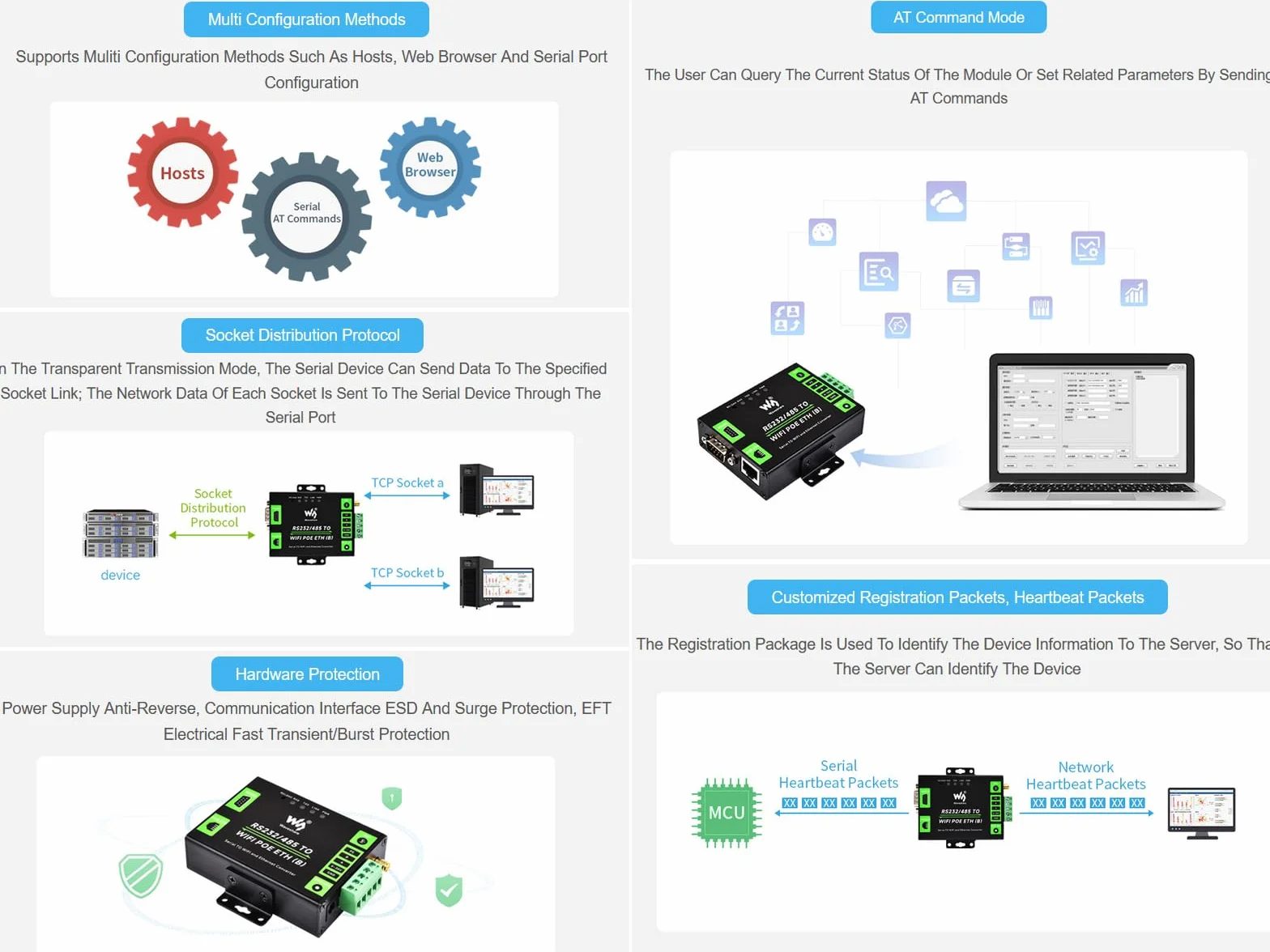

- ★ Featrues multi configuration methods, AT command mode, socket distribution protocol, hardware protection, customized registration packets, heartbeat packets
